Insulated Roll Range
ROLL 130
Ext. diam. in inches
(W x D x H):
28.15 x 23.62 x 31.50
Int. diam. in inches
(W x D x H):
20.47 x 16.54 x 24.80
Optional equipment
Size: Roll container
ROLL 220
Ext. diam. in inches
(W x D x H):
23.62 x 31.50 x 44.49
Int. diam. in inches
(W x D x H):
16.93 x 24.41 x 32.68
Optional equipment
Size: Half Euro-pallet Euronormcrate
ROLL 300
Ext. diam. in inches
(W x D x H):
28.15 x 31.89 x 44.88
Int. diam. in inches
(W x D x H):
21.89 x 25.00 x 33.27
Optional equipment
Size: Roll-sec
ROLL 370
Ext. diam. in inches
(W x D x H):
23.62 x 31.50 x 65.75
Int. diam. in inches
(W x D x H):
16.93 x 24.41 x 53.94
Optional equipment
Size: Roll-sec

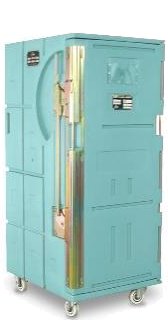

ROLL 500
Ext. diam. in inches
(W x D x H):
28.15 x 33.46 x 66.93
Int. diam. in inches
(W x D x H):
21.46 x 26.18 x 54.33
Optional equipment
Size: Roll Sec UK
ROLL 550
Ext. diam. in inches
(W x D x H):
25.98 x 37.40 x 73.03
Int. diam. in inches
(W x D x H):
18.43 x 30.31 x 60.16
Optional equipment
Size: Roll container UK

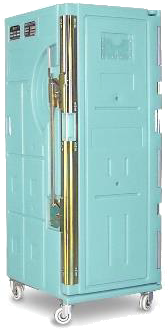

ROLL 580
Ext. diam. in inches
(W x D x H):
28.15 x 31.89 x 74.80
Int. diam. in inches
(W x D x H):
21.65 x 25.20 x 62.99
Optional equipment
Size: Roll container
ROLL 650
Ext. diam. in inches
(W x D x H):
29.13 x 37.01 x 72.44
Int. diam. in inches
(W x D x H):
22.24 x 29.92 x 59.06
Optional equipment
Size: Roll container
ROLL 780
Ext. diam. in inches
(W x D x H):
31.50 x 39.37 x 74.80
Int. diam. in inches
(W x D x H):
24.02 x 32.28 x 60.43
Optional equipment
Size: Euronorm crate

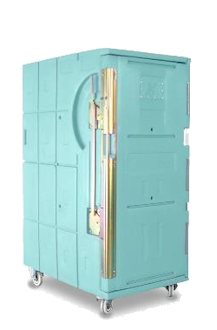

ROLL 900
Ext. diam. in inches
(W x D x H):
31.50 x 47.24 x 73.23
Int. diam. in inches
(W x D x H):
24.02 x 39.37 x 58.78
Optional equipment
Size: Euro-pallet

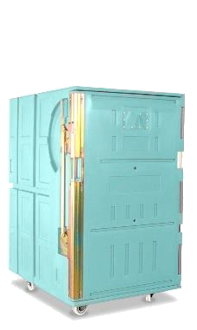

ROLL 1100
Ext. diam. in inches
(W x D x H):
39.37 x 47.24 x 67.72
Int. diam. in inches
(W x D x H):
31.69 x 39.37 x 53.94
Optional equipment
Size: ISO pallet

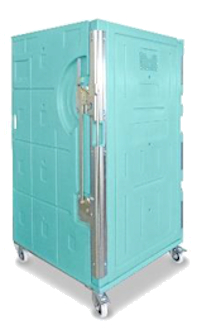

ROLL 1300
Ext. diam. in inches
(W x D x H):
43.31 x 43.31 x 75.98
Int. diam. in inches
(W x D x H):
35.43 x 35.83 x 61.81
Optional equipment
Size: Asia pallet

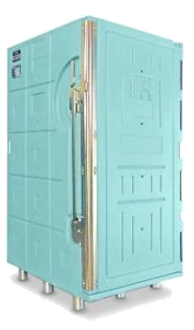

ROLL 1410
Ext. diam. in inches
(W x D x H):
39.37 x 47.24 x 78.74
Int. diam. in inches
(W x D x H):
31.69 x 39.76 x 66.14
Optional equipment
Size: ISO pallet
 | Eutectic plate |
 | Dry ice drawer |
 | SIBER SYSTEM® Chilled or Frozen |
 | SIBER SYSTEM® Mixed |
| Half Euro-pallet | 23.62 x 31.50 |
| Euronorm crate | 23.62 x 15.75 |
| Euro-pallet | 31.50 x 47.24 |
| ISO pallet | 39.37 x 47.24 |
| Asia pallet | 43.31 x 1100 |
Refrigeration systems
Eutectic plates
OLIVO makes its own eutectic plates and fluids (+21°C, 0°C, -3°C, -12°C, -17°C, -21°C et -26°C).
The most commonly used eutectic plates are:
• +15°C/+25°C for cosmetics, chocolates, wines, pharmaceuticals.
• 0°C for refrigerated pharmaceuticals.
• -3°C for chilled foods.
• -21°C for frozen goods.
Placed in the top of the BOX, the eutectic plate releases the thermal energy it stored up when it was frozen in the freezing chamber.
| Model | Dimensions in inches | Weight in pounds +/- 8% |
| 500 CC | 8.66 X 5.83 X .79 | 1.13 |
| 250 CC | 7.68 X 3.54 X .79 | .66 |
| TOP 64 | 14.33 X 6.69 X .79 | 2.31 |
| TOP 55 | 13.98 X 8.86 X 1.26 | 4.12 |
Dry Ice
